Gulls Way

The Gulls Way capital works scheme in Heswall, Wirral, required combined sewer improvements along an existing residential street where the existing 450mm concrete sewer had insufficient capacity to cope with high volumes of rainfall, causing the surrounding road and number of properties to flood during storm events.

Working closely with Welsh Water, consultant engineering AECOM, main contractor Costain and groundworker Mulcair Ltd from an early design stage, Polypipe CGU supplied a fully engineered Ridgistorm-XL attenuation system, comprising of a dual pipe run to provide an additional 360m³ of storage.

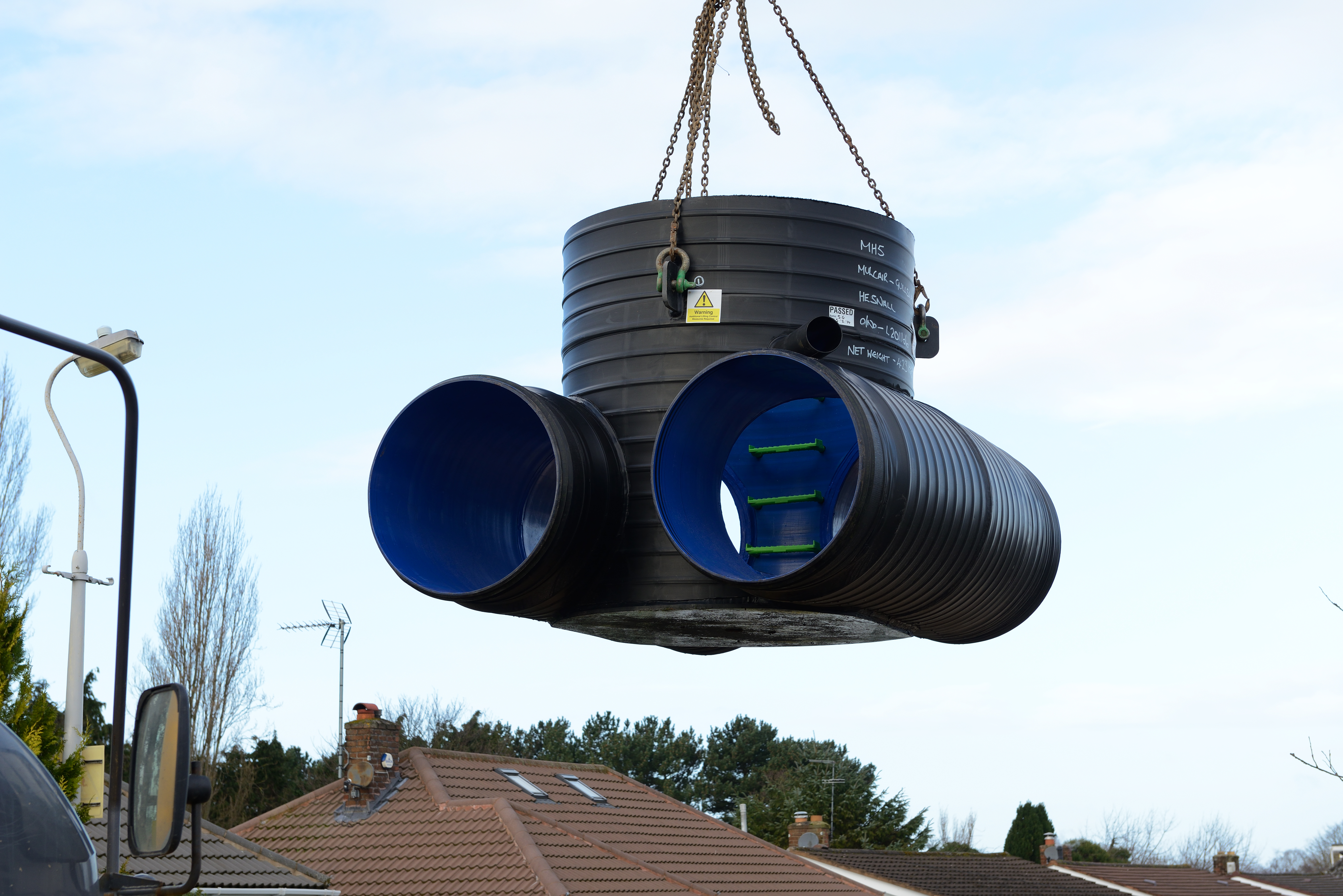

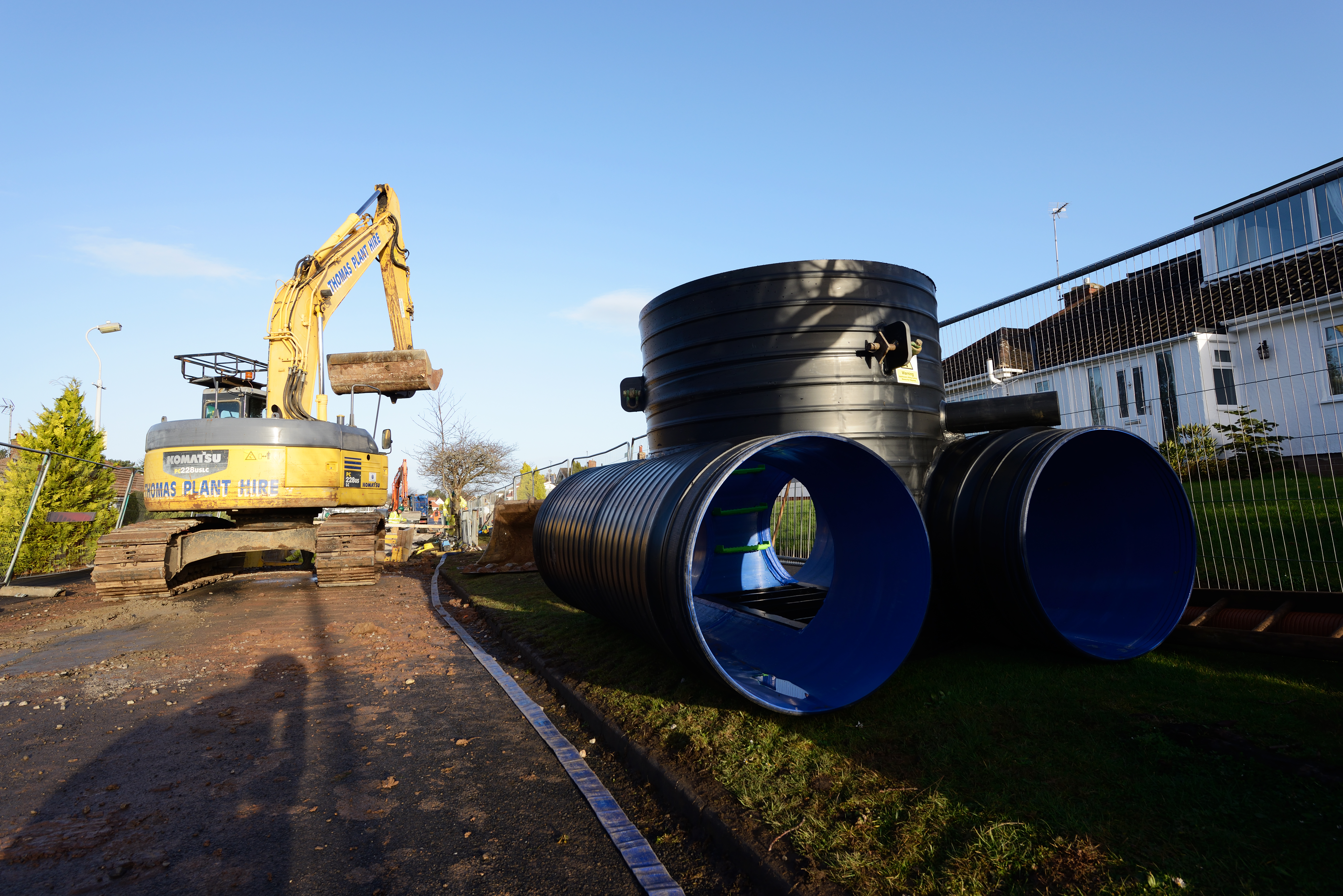

As well as providing Ridgistorm-XL pipes in 900mm diameters, Polypipe CGU also utilised its large diameter piping and its ability to prefabricate structural components to create a number of 1500mm chambers and unique modular ‘H’ access manholes to sit between the pipe runs.

Dave Owens, Senior Engineer at AECOM, said: “Our key aims on this project were to save time and cost associated with in-situ construction whilst minimising disruption to residents in the immediate local area, which is why using a pre-fabricated system from Polypipe CGU was ideal for the Gulls Way project.”

Paul Hancock, Project Manager at Costain, said: “Our biggest challenge was minimising disruption to the local residents affected by the flooding scheme. The Polypipe CGU system limited the amount of work undertaken in the highway and ensured that we were able to progress much quicker than if we had used more traditional methods.”

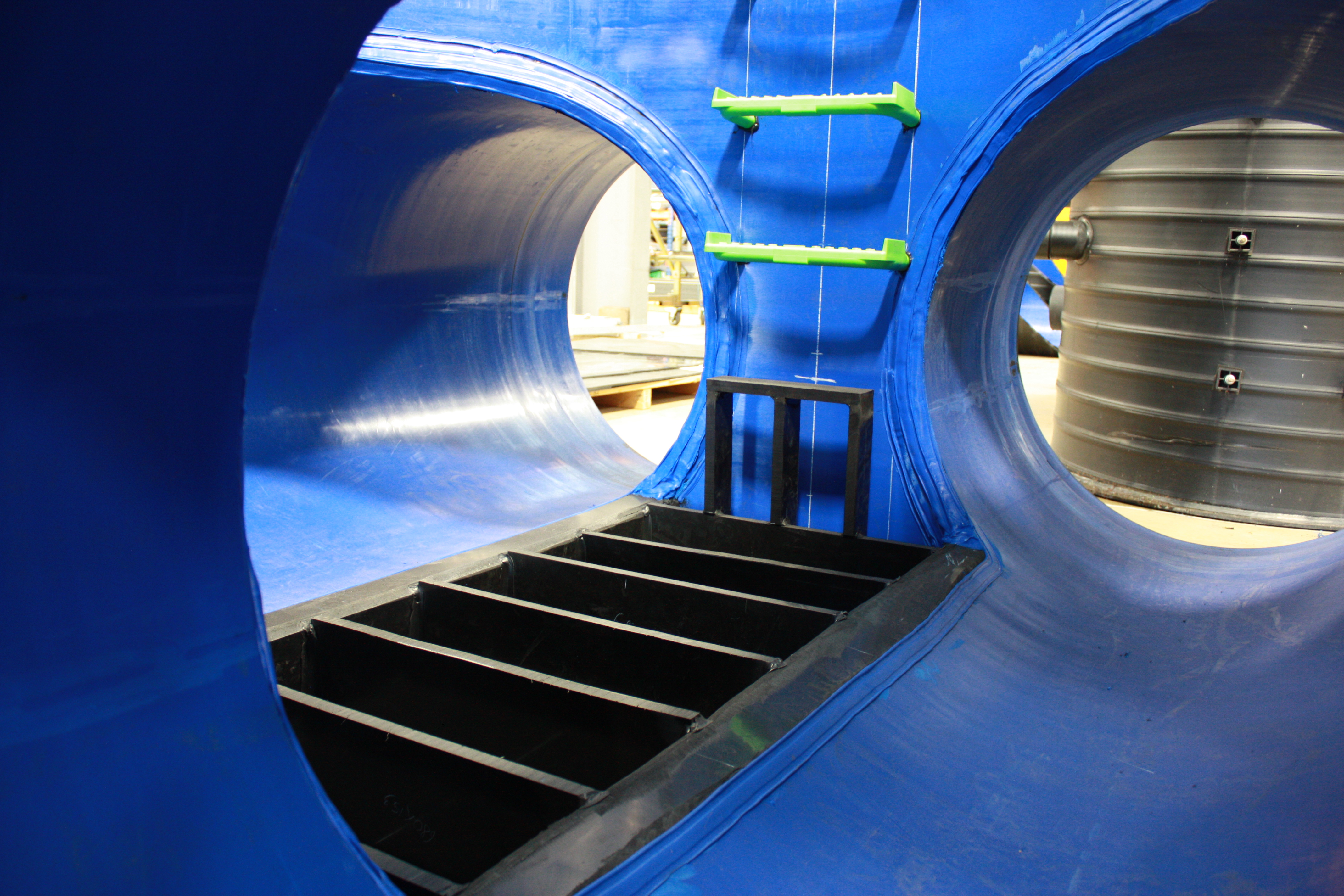

Polypipe CGU was able to deliver the chambers to site with internal benching and step runs incorporated, and the light weight nature of their plastic systems, combined with Ridgistorm-XL’s factory fitted lifting points, meant that the new combined sewer system was able to be installed much quicker and safer than would have otherwise been possible, minimising the project’s impact on road users and local residents.

Sean Norris, Water Sector Project Manager for Polypipe CGU, said: “The Gulls Way project was collaboration at its best, with all of the partners and the end client keen to provide the most effective solution possible. Our technical expertise and manufacturing capabilities meant that we were able to negate many of the potential issues that a project such as this can face and provide an engineered solution that met the needs of all parties exactly.”
